DS-KV6113-WPE1 - IP bránková stanica Villa, 2Mpx, WiFi, Mifare - Hikvision

Podrobný popis

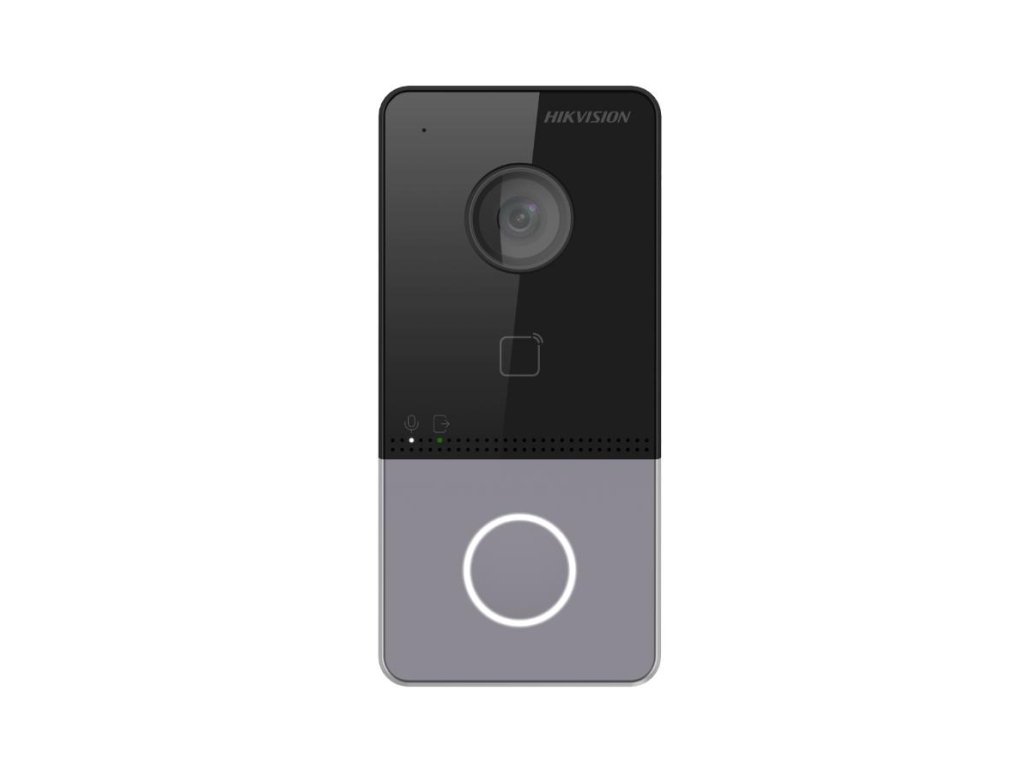

IP bránková stanica Villa DS-KV6113-WPE1 - Hikvision

DS-KV6113-WPE1 je integrovaná bránková stanica, určená pre systémy IP videovrátnikov druhej generácie, od firmy Hikvision. Zariadenie je vybavené vysoko kvalitnou širokouhlou kamerou s rozlíšením 2Mpx @1920x1080, obojsmerným systémom hlasovej komunikácie a tlačidlom volania. Naviac je tento model vybavený čítačkou prístupových tagov v štandarde Mifare, čo umožňuje ovládanie otvárania pomocou blízkostných transpondérov, ako sú karty alebo prívesky.

Technické parametre:

• Snímač kamery: CMOS 2Mpx
• Širokouhlý objektív 129°
• Video kompresia: H.264
• Infračervený osvetľovač: IR3m
• Funkcie obrazu: BLC, DNR, True WDR
• Vstavaný reproduktor: Áno
• Podsvietenie tlačidla: LED
• Relé výstupy: 1x NC/NO
• Alarmové vstupy: 4
• Bezkontaktná čítačka: MIFARE 13.56MHz
• Ethernet rozhranie: 1x RJ45 10/100M, 2.4GHz Wi-Fi
• Diaľkové ovládanie: iVMS-4200, Hik-Connect
• Napájanie: DC 12V / PoE 802.3af
• Krytí: IP65
• Materiál: ABS plast
• Rozmery:138 mm × 65 mm × 27 mm
• Montáž: povrchová

IP videovrátniky - 2. generácie

Onto the second generation of IP videovrátnikov from Hikvision bestir si prevailing moderný design, expanded functionality and intuitiveness of service through mobile devices. The 2. generation IP systems can function both as one subscription and as multi-family. Moreover, the videovrátnik cooperates with other elements of building automation and security systems, such as the SWiN system, access control, or video surveillance system.

It is recommended to use the IP monitors DS-KH6320-WTE1 alebo DS-KH3320-WTE1 with the external station DS-KV6113-WPE1.

Complete lens image

Thanks to the use of a powerful CMOS 2Mp sensor and a wide-angle lens, the station guarantees a smooth and clear image, regardless of weather conditions and outdoor lighting. Additionally, integrated image quality enhancement features are a significant advantage, as seen in modern IP cameras like:

• BLC - light compensation from behind the camera
• DNR - digital noise reduction of the light-sensitive sensor
• True WDR - mechanical wide dynamic range
• IR illuminator - allowing night recording
• Motion detection - image archiving at the moment of movement detection

WiFi or UTP connection

The Villa IP gate panels (-WME or WPE) have two built-in network interfaces: Ethernet s PoE and WiFi. This gives the user the ability to connect the external panel to the internal monitor in two ways:

1. wirelessly - through the WiFi module with the router (panel powered locally)
2. wired - through a PoE switch and twisted-pair cable UTP

With this, the DS-KV6113-WPE1 station is also an ideal choice for those who do not have an existing cabling structure.

Notice: To ensure stable operation in a wireless connection, a sufficiently strong WiFi signal within the system is required.

Series presentation

Intuitive configuration

The external stations in the Villa series are configurable remotely via the iVMS-4200 program and directly via the web browser (built-in web interface). This solution simplifies both the installation and operation process of the device, making it incomparably more intuitive compared to previous generations of network videovrátnikov.

Additionally, through collaboration with the mobile app via P2P cloud, the user can configure the system from any location without the need for public IP addresses.
